Execution Contexts and the Call Stack

What happens when you run JavaScript Code?

  • Execution context is created when javascript code is run.
  • Execution context is created in two phases
    1. Memory creation phase
    2. Code execution phase
1
2
3
4
5
6
7
8
9
var n =2;

function square (num){
    var ans = num * num;
    return ans;
}

var square2 = square(n);
var square4 = square(4);

Here's an explanation of how the JavaScript code is executed:

1️⃣ Global Execution Context Creation

  • When the script starts, JavaScript creates a main container called the Global Execution Context.
  • This context handles memory allocation and code execution.

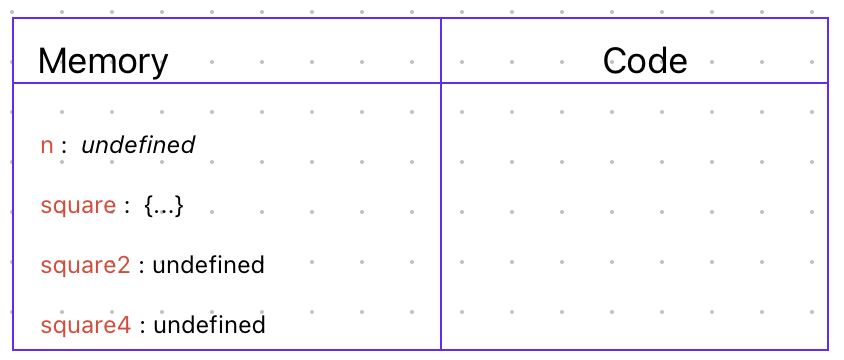

Memory Creation Phase

  • Memory is set aside for the variable n (initially undefined).
  • The entire square function definition is stored in memory.
  • Memory is set aside for variables square2 and square4 (initially undefined).

Memory Phase

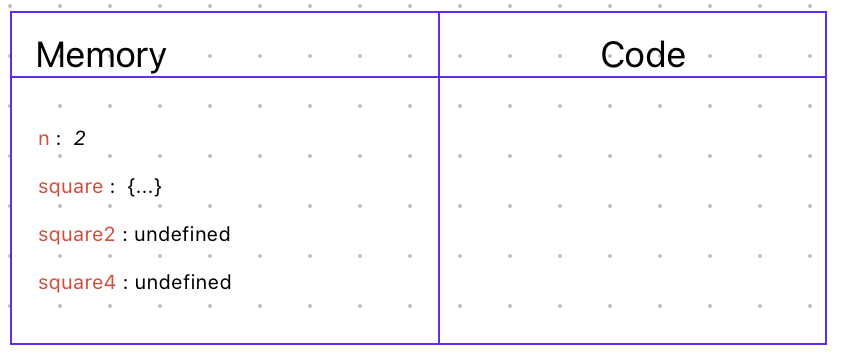

Code Execution Phase

  • The code is executed line by line.
  • var n = 2;: The value 2 is assigned to the variable n.

Memory Phase

2️⃣ First Function Call: square(n)

  • var square2 = square(n);: The square function is called with the current value of n (which is 2).

  • New Function Execution Context: A new, temporary context is created specifically for this function call.

    • Memory Phase: Memory is allocated for the parameter num and the variable ans (both initially undefined).

      Identifier Value
      num undefined
      ans undefined

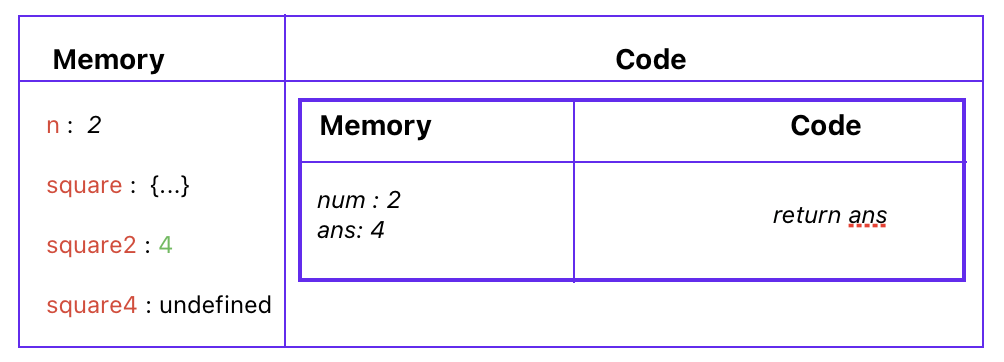

    • Code Execution Phase:

      • num gets the value passed into the function (2).
      • var ans = num * num;: ans is calculated as 2 * 2, which is 4.
      • return ans;: The value 4 is returned from the function.

Memory Phase

  • Context Deletion: The Function Execution Context for square(2) is destroyed.
  • The returned value (4) is assigned to the variable square2.

3️⃣ Second Function Call: square(4)

  • var square4 = square(4); is executed.

  • New Function Execution Context (for square(4))

    • Memory Creation Phase: Memory is allocated for num and ans (both undefined).

      Identifier Value
      num undefined
      ans undefined

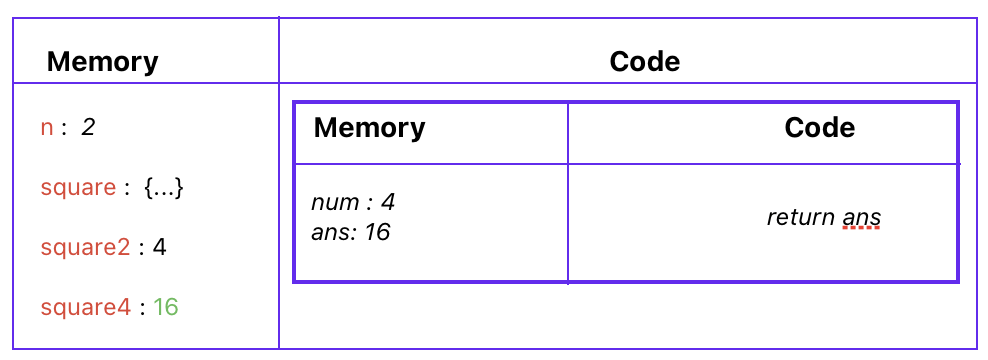

    • Code Execution Phase:

      • num gets the value passed into the function (4).
      • var ans = num * num;: ans is calculated as 4 * 4, which is 16.
      • return ans;: The value 16 is returned.

Memory Phase

  • Function context is destroyed.
  • square4 is assigned the returned value 16.

4️⃣ End of Script

After all lines are executed, the Global Execution Context is deleted.

Final Output

After the code runs:

  • n will have the value 2.
  • square2 will have the value 4.
  • square4 will have the value 16.

Video Explanation

📁 Call Stack in JavaScript

The call stack is a fundamental mechanism in JavaScript that manages the creation, deletion, and control of execution contexts during code execution.

The call stack works just like a physical stack—last in, first out (LIFO). At the bottom of the stack is the Global Execution Context (GEC). Whenever a JavaScript program runs, the GEC is created and pushed onto the call stack.

Step-by-Step Example

1
2
3
4
5
6
7
var n = 2;
function square(num) {
    var ans = num * num;
    return ans;
}
var square2 = square(n);
var square4 = square(4);

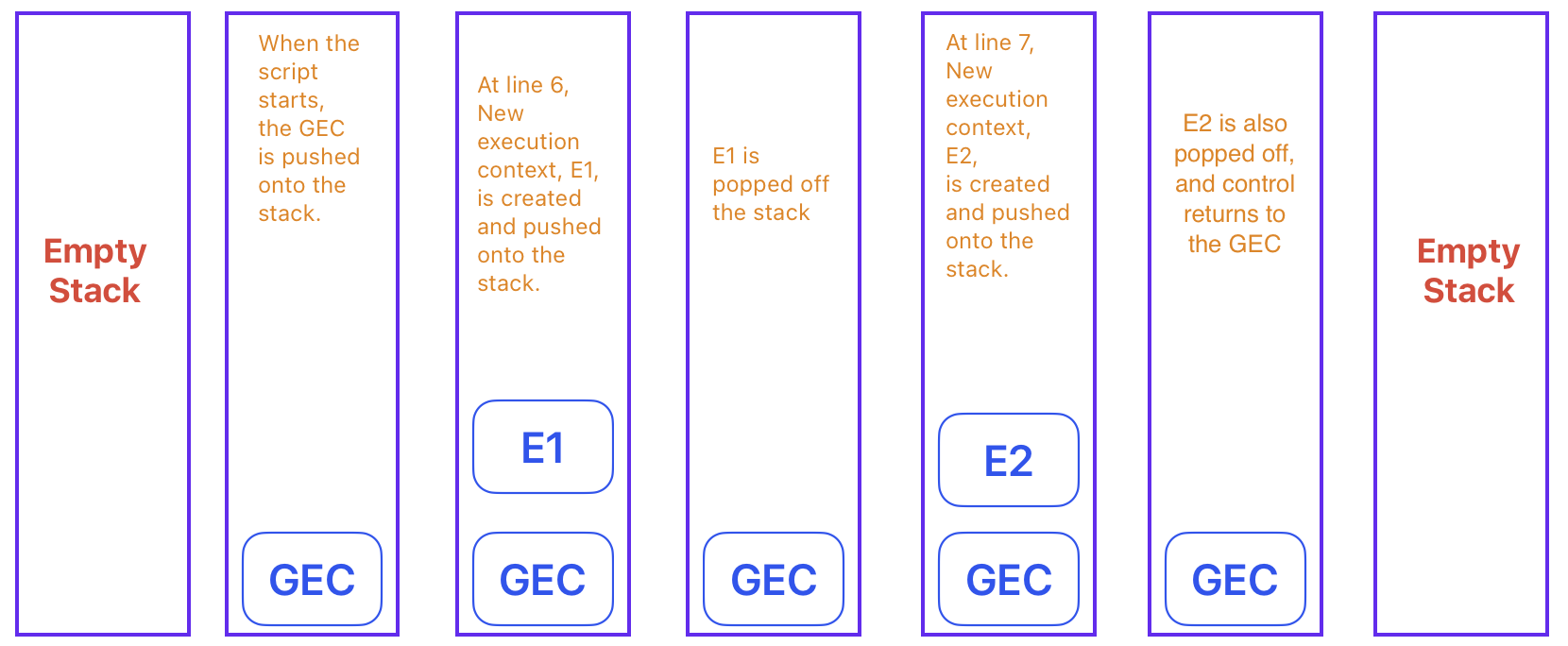

Here's how the call stack manages execution:

Call Stack
Call Stack

  • Global Execution Context (GEC):

    When the script starts, the GEC is pushed onto the stack.

  • Function Invocation:

    Each time a function is invoked (e.g., square(n) at line 6), a new execution context (let's call it E1) is created and pushed onto the stack above the GEC.

  • Function Completion:

    Once the function finishes executing, E1 is popped off the stack, and control returns to the GEC.

  • Subsequent Function Calls:

    When another function is called (e.g., square(4) at line 7), a new execution context (E2) is created and pushed onto the stack. After execution, E2 is also popped off, and control returns to the GEC.

  • End of Script:

    After all code has executed, the GEC is removed, leaving the call stack empty.

Key Points

  • The call stack is a LIFO structure that manages order of execution contexts.
  • Each function call creates a new context, which is pushed onto the stack.
  • When a function completes, its context is popped off the stack.
  • The GEC is always at the bottom of the stack.
  • The call stack is also known as:
    • Execution Context Stack
    • Program Stack
    • Control Stack
    • Runtime Stack
    • Machine Stack

Further Reading

Please refer to the Asynchronous JavaScript & Event Loop for more details on how the call stack interacts with asynchronous operations.
