Function Invocation and Variable Environment in JavaScript

This section explains how JavaScript handles function calls and manages variables using execution contexts, illustrated with an example involving two functions, a() and b(), each declaring a variable named x but with different values. We also include a global variable x to demonstrate scope differences.

Understanding this process is fundamental to grasping concepts like scope and closures in JavaScript

Consider the following code:

var x = 1;
a();
b();
console.log(x);

function a(){
    var x= 10;
    console.log(x)
}

function b(){
    var x= 100;
    console.log(x)
}

The expected output is

10                                  index.js:8
100                                 index.js:13
1                                   index.js:4

Let's break down the execution step-by-step:

Execution Context Overview

When a JavaScript program runs, a Global Execution Context (GEC) is created. Every execution context has two phases:

1. Creation Phase: The JavaScript engine sets up the memory space for variables and functions (the Variable Environment). Variables declared with var are initialized with undefined. Function declarations are stored entirely.
2. Execution Phase: The code is executed line by line.

The Call Stack manages execution contexts. The GEC is the base of the stack. When a function is called, a new Function Execution Context (FEC) is created and pushed onto the stack. When the function finishes, its FEC is popped off the stack.

Step-by-Step Execution:

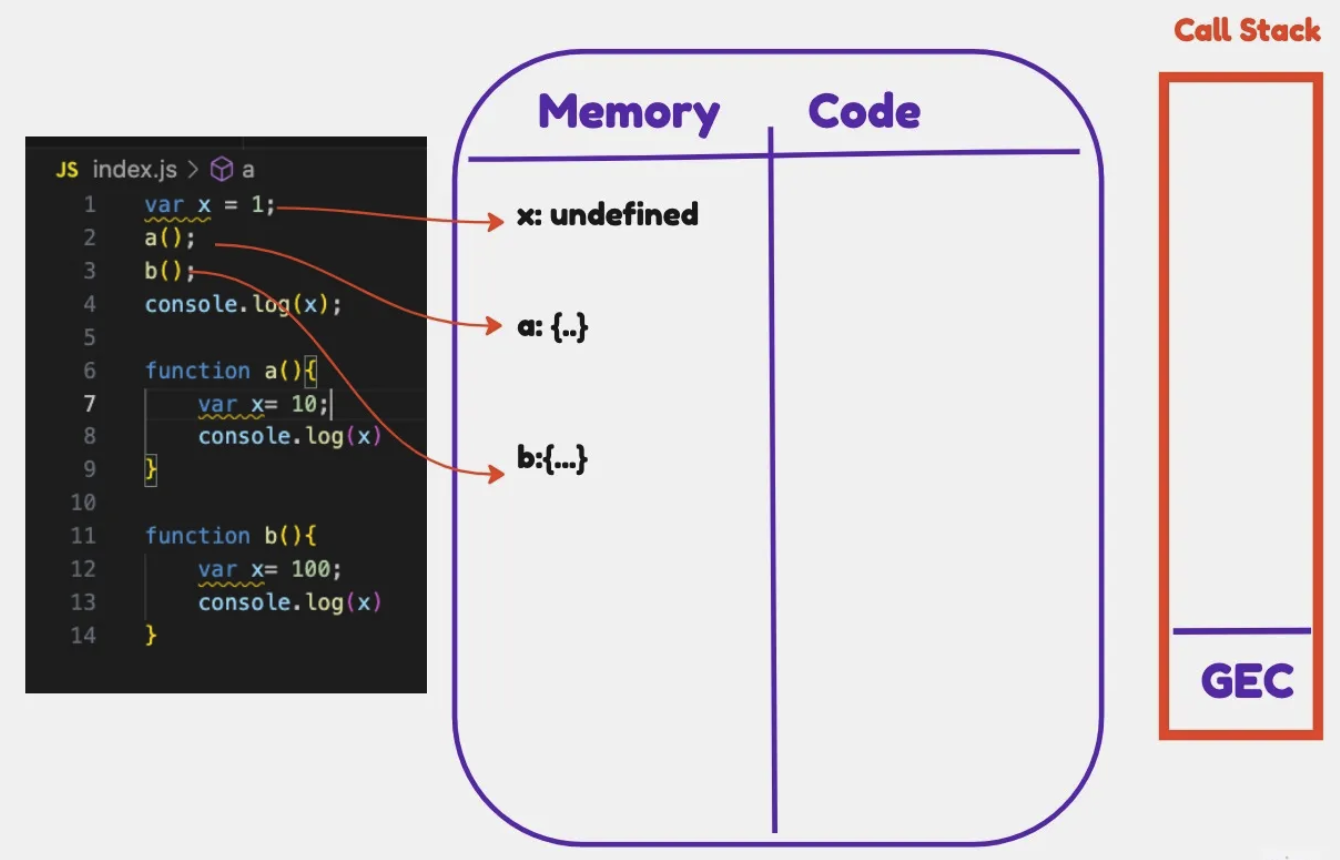

1. GEC Creation:

   • The GEC is created and pushed onto the Call Stack.
   • Memory is allocated for x, a, and b in the GEC's Variable Environment. x is initialized to undefined. a and b store their function definitions.

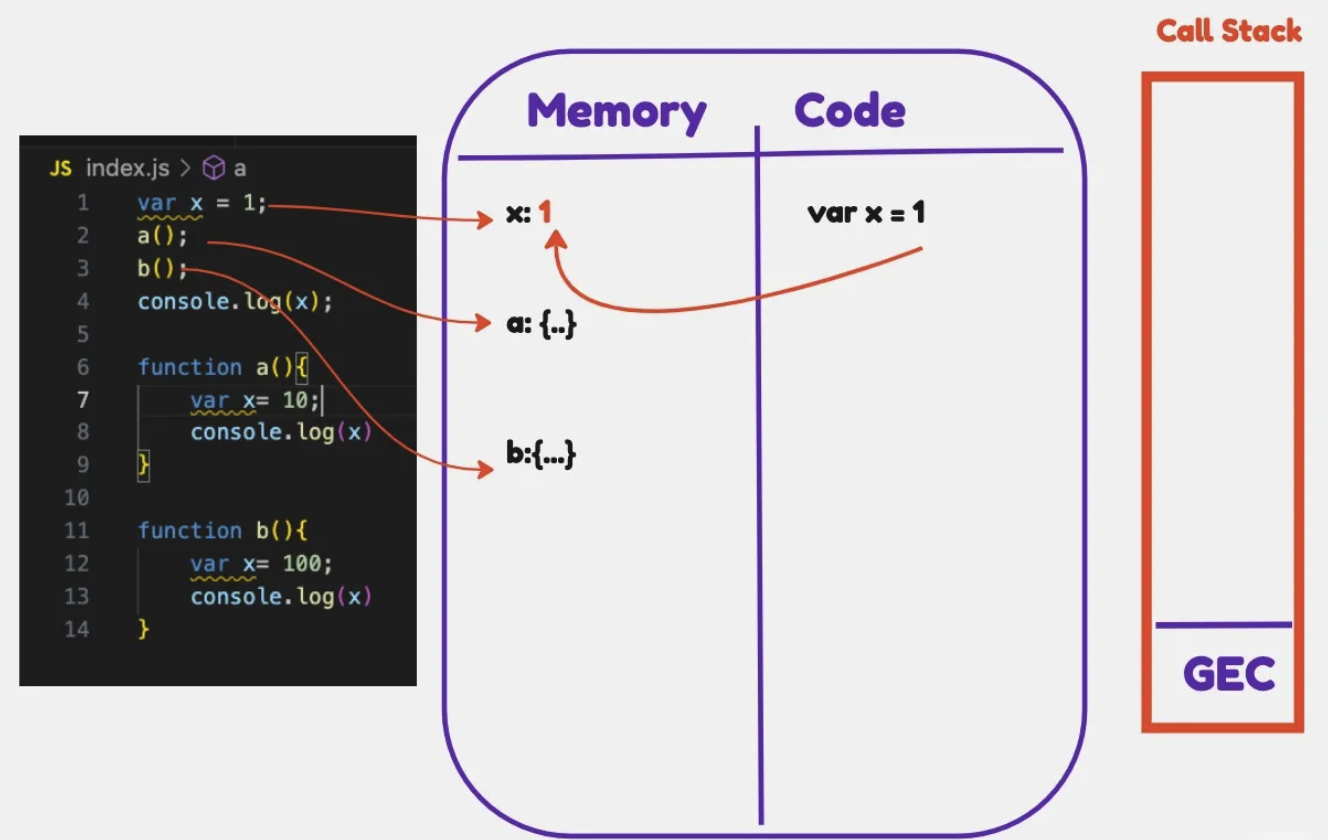

2. GEC Execution (Line 1):

   • var x = 1; is executed.
   • The value 1 is assigned to the global variable x.

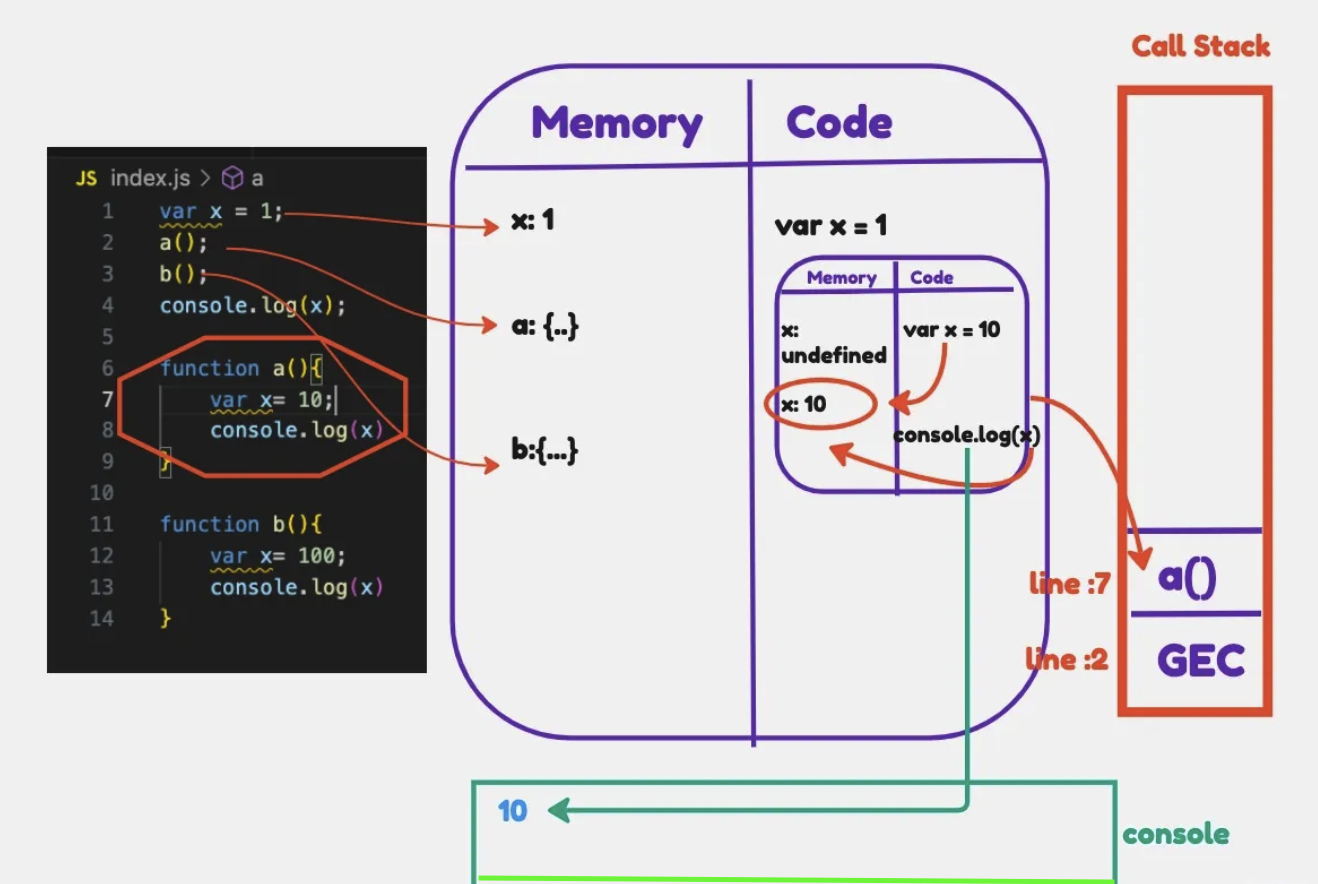

3. GEC Execution (Line 2): a() Invocation:

   • Function a() is called.
   • A new Function Execution Context (FEC) for a is created.
   • a FEC Creation Phase: Memory is allocated for a's local variable x, initialized to undefined.
   • The a FEC is pushed onto the Call Stack. Control enters function a.

4. a FEC Execution (Line 7):

   • var x = 10; is executed within a.
   • The value 10 is assigned to the local variable x within a's FEC.

5. a FEC Execution (Line 8):

   • console.log(x); is executed.
   • JavaScript looks for x in the current FEC (a's context). It finds the local x with the value 10.
   • 10 is printed to the console.

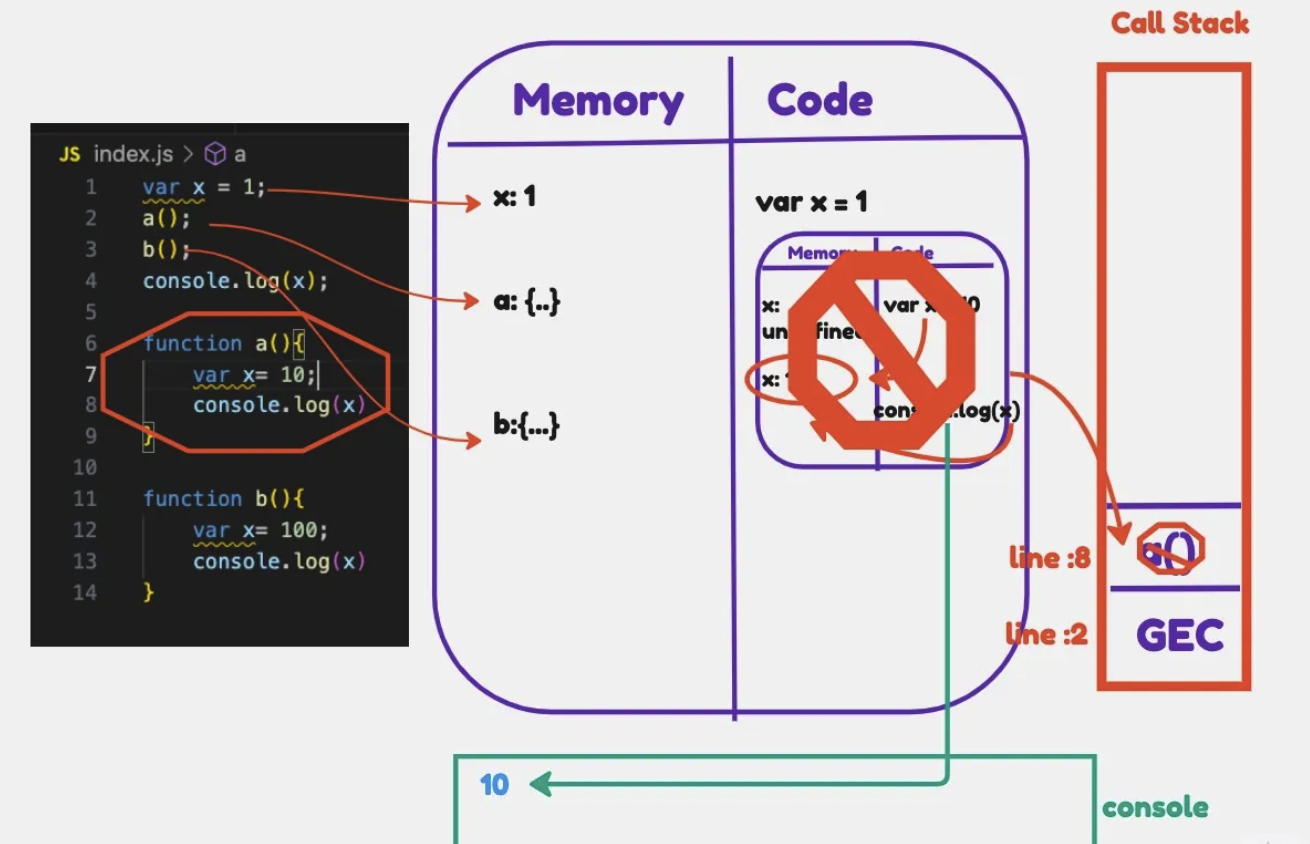

6. a FEC Completion (End of function a):

   • Function a finishes execution.
   • The FEC for a is popped off the Call Stack and destroyed. Control returns to the GEC at the point where a was called (after line 2).

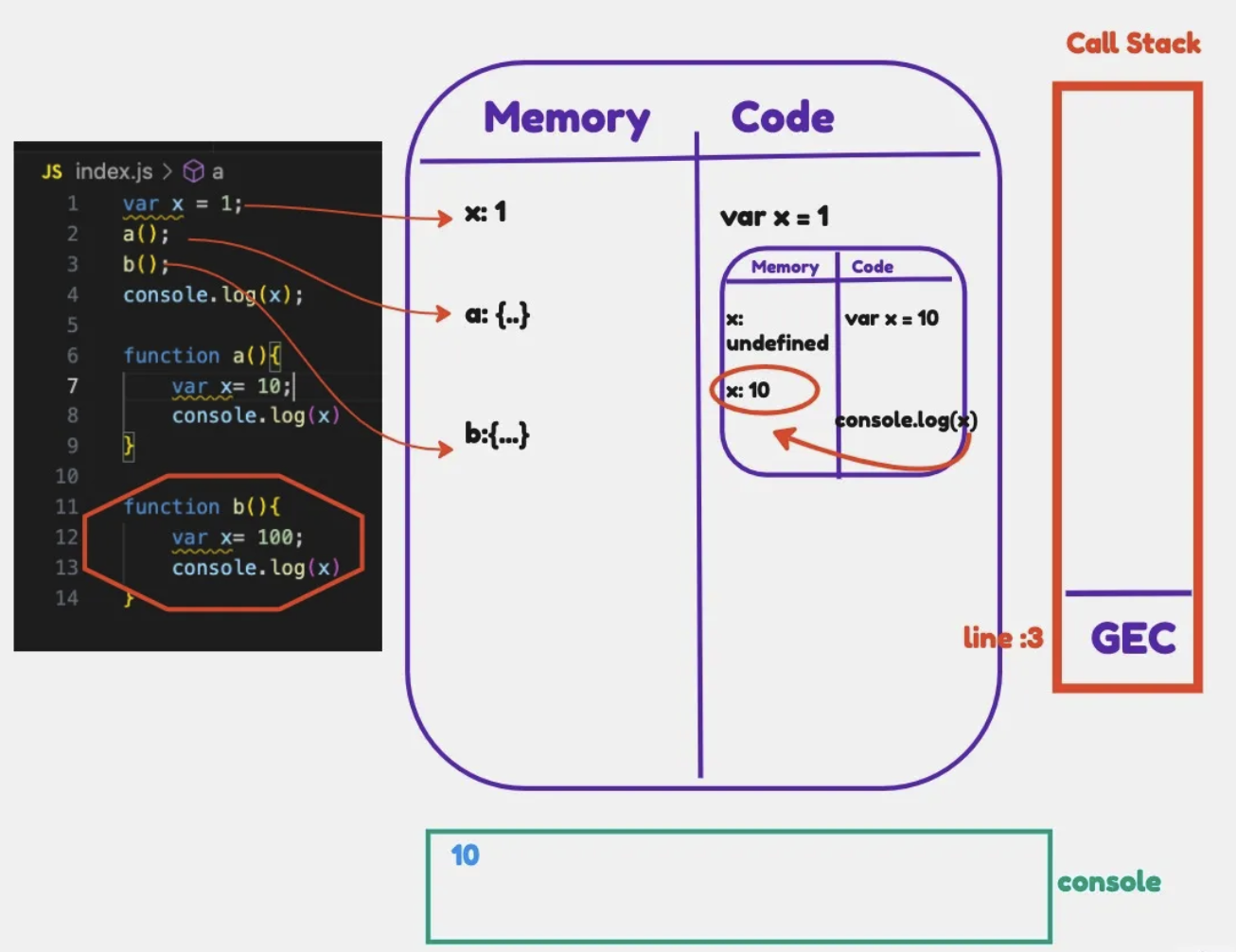

7. GEC Execution (Line 3): b() Invocation:

   • Control is now at line 3 in the GEC.
   • Function b() is called.
   • A new FEC for b is created.
   • b FEC Creation Phase: Memory is allocated for b's local variable x, initialized to undefined.
   • The b FEC is pushed onto the Call Stack. Control enters function b.

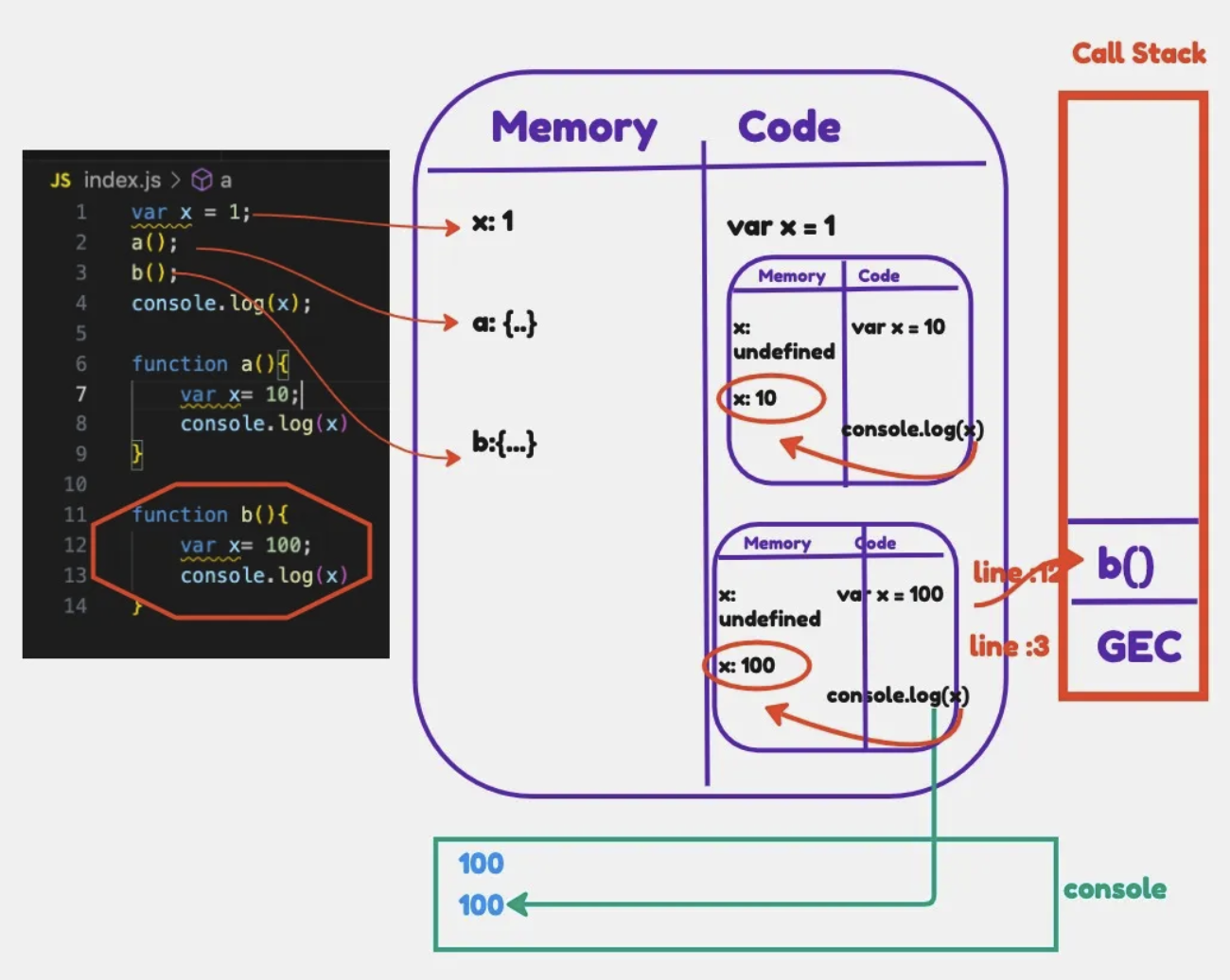

8. b FEC Execution (Line 12):

   • var x = 100; is executed within b.
   • The value 100 is assigned to the local variable x within b's FEC.

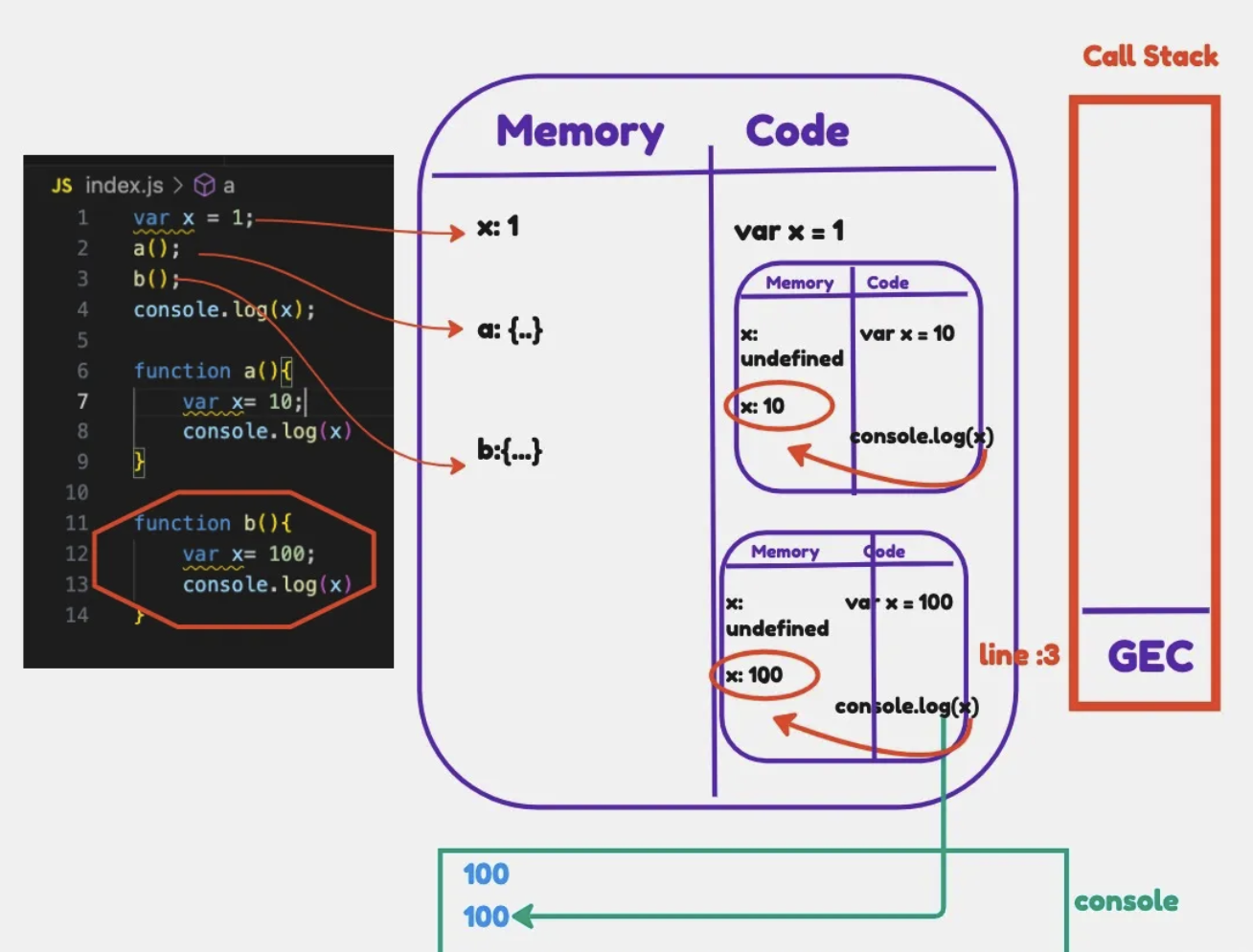

9. b FEC Execution (Line 13):

   • console.log(x); is executed.
   • JavaScript looks for x in the current FEC (b's context). It finds the local x with the value 100.
   • 100 is printed to the console.

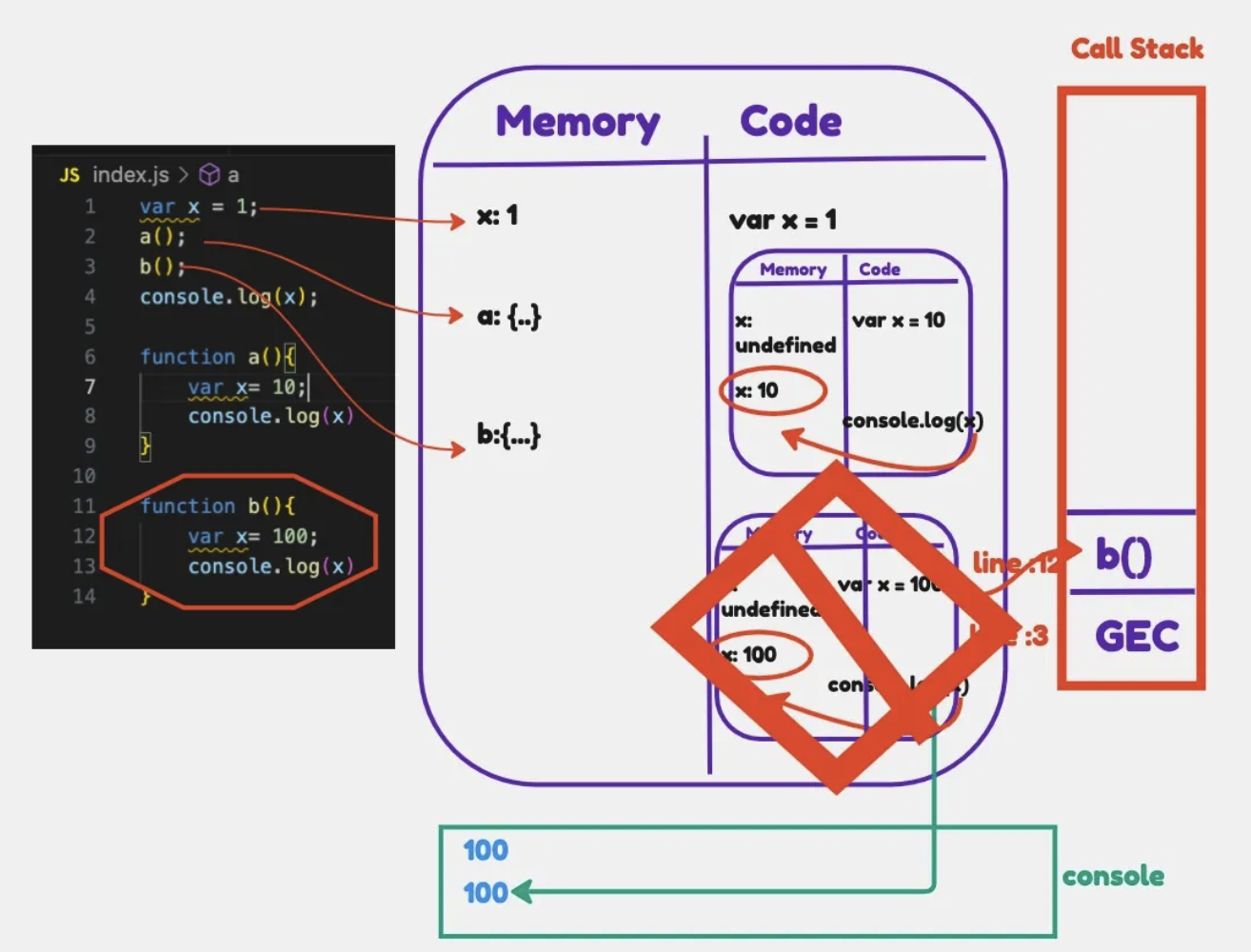

10. b FEC Completion (End of function b):

    • Function b finishes execution.
    • The FEC for b is popped off the Call Stack and destroyed. Control returns to the GEC at the point where b was called (after line 3).

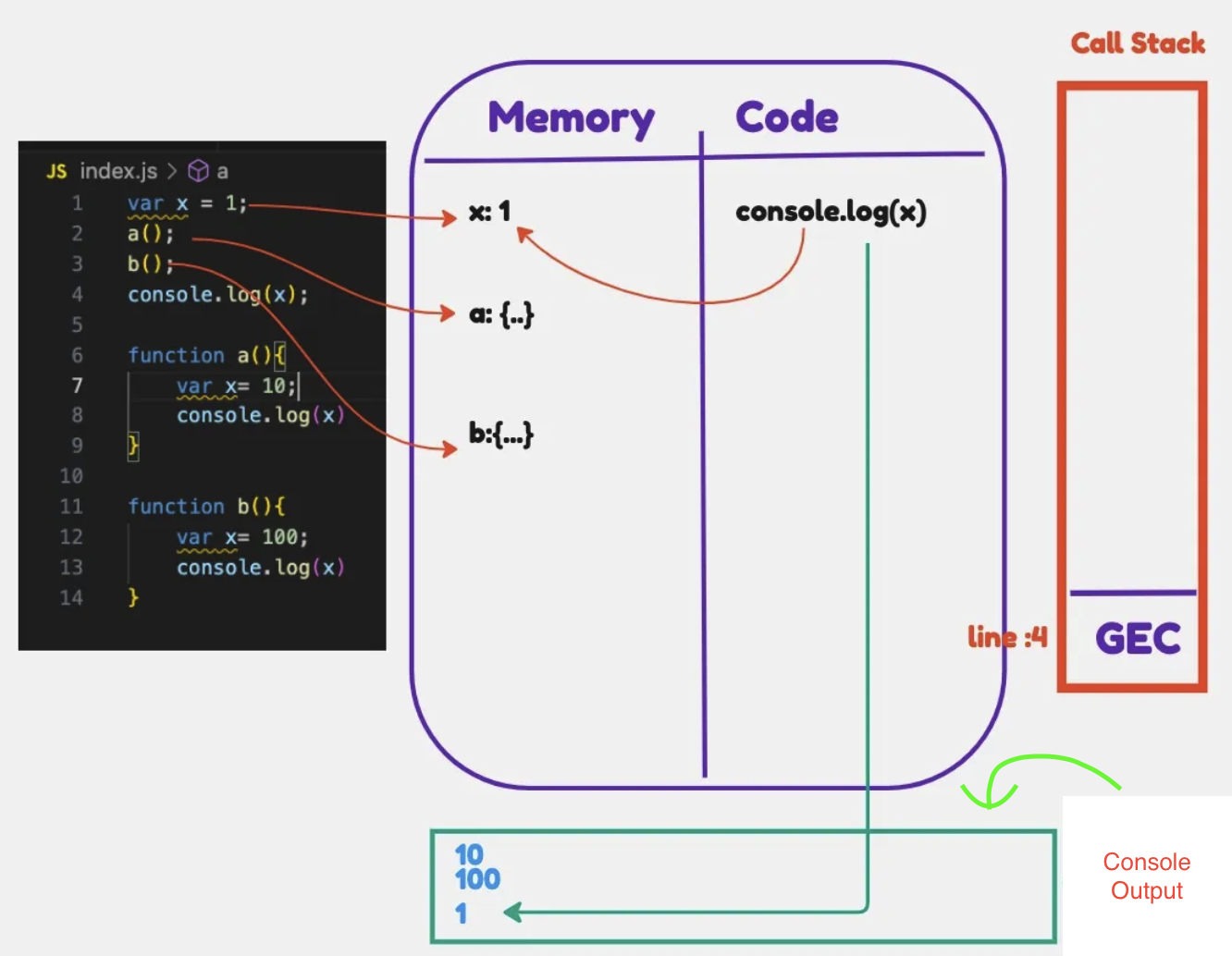

11. GEC Execution (Line 4):

    • Control is now at line 4 in the GEC.
    • console.log(x); is executed.
    • JavaScript looks for x in the current execution context (the GEC). It finds the global x with the value 1.
    • 1 is printed to the console.

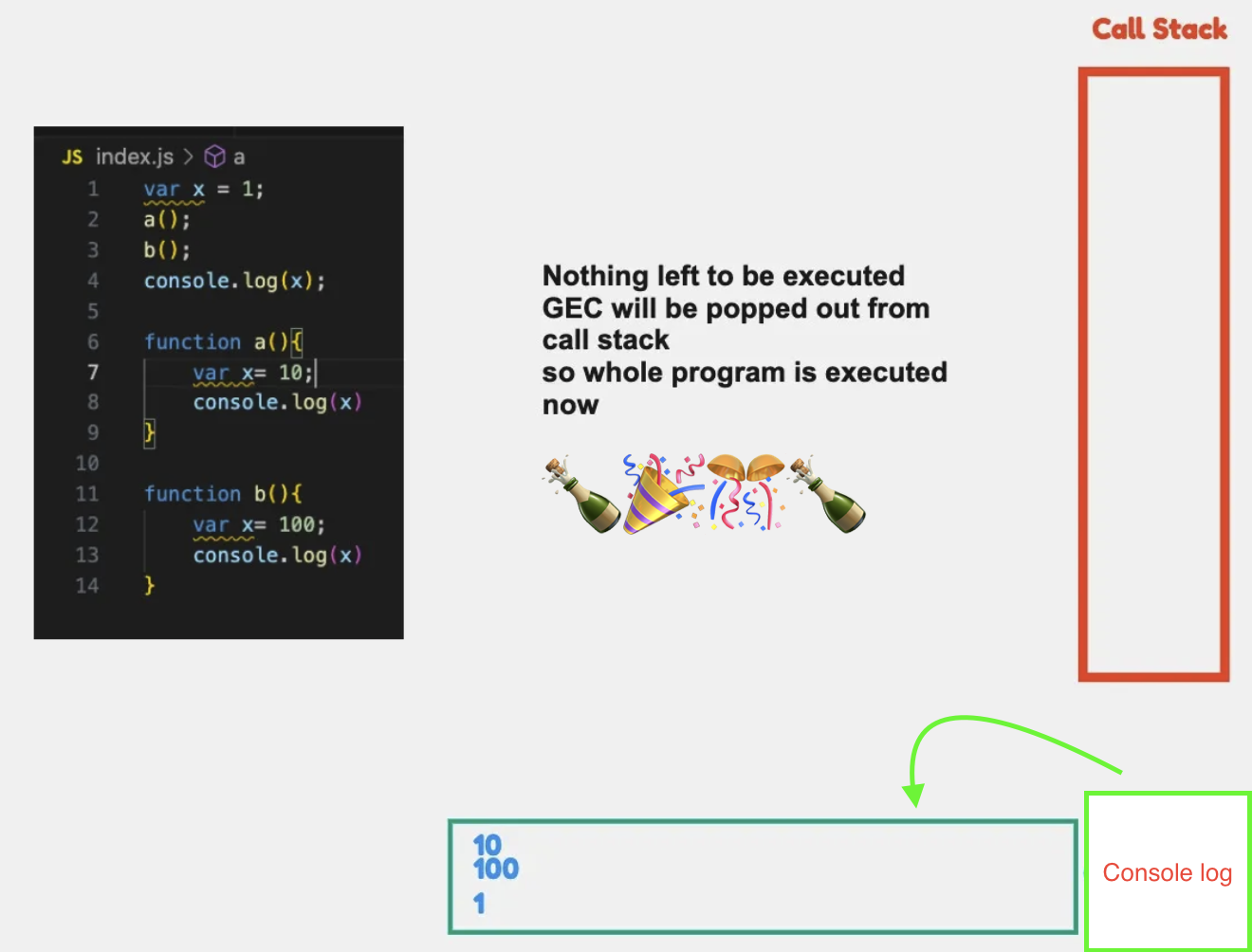

12. GEC Completion:

    • The script reaches the end.
    • The GEC is popped off the Call Stack. The program finishes.

This detailed breakdown illustrates how JavaScript manages separate execution contexts for global code and each function call, ensuring variables in different scopes do not interfere with each other.

For video explanation, refer to Namaste Javascript series.
